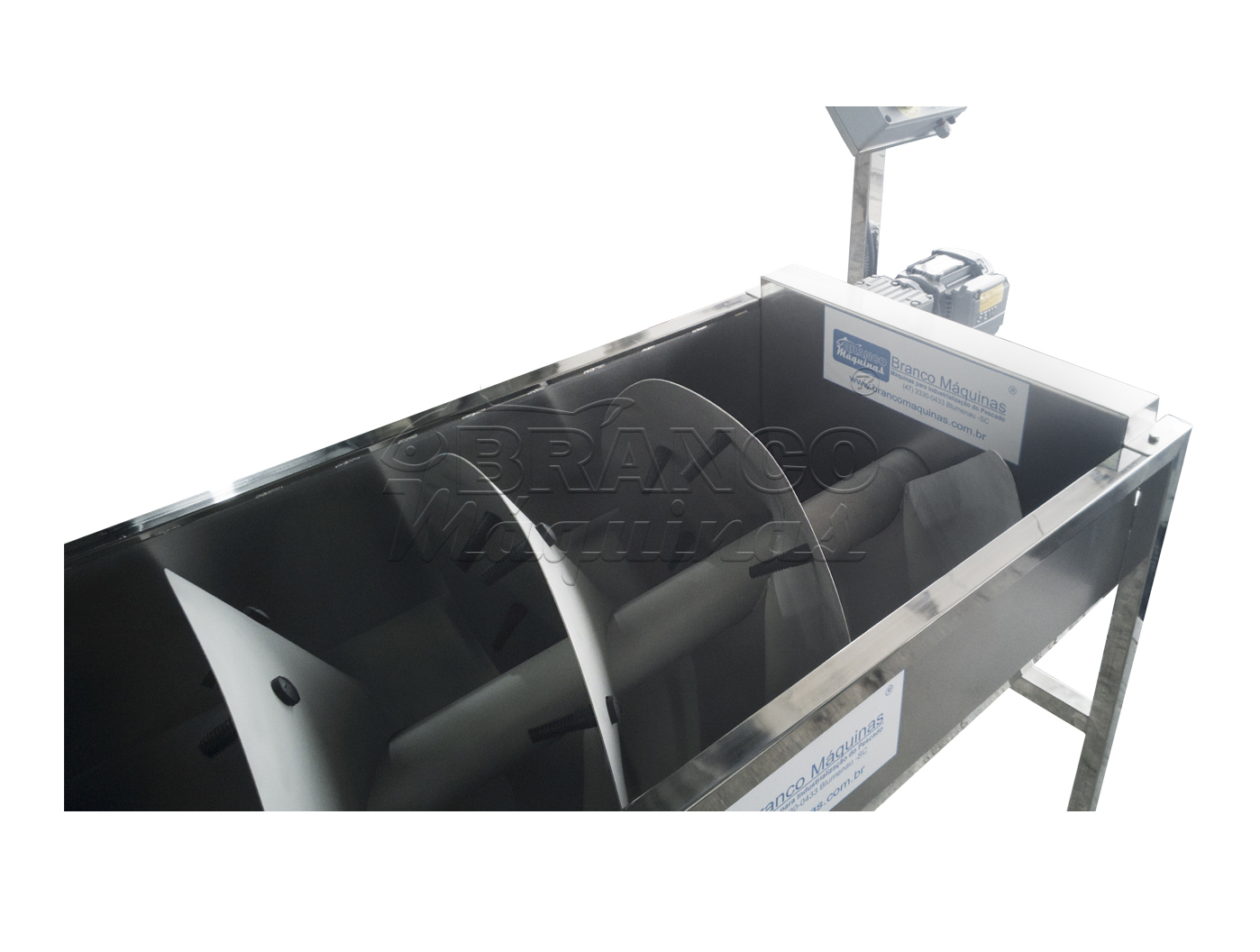

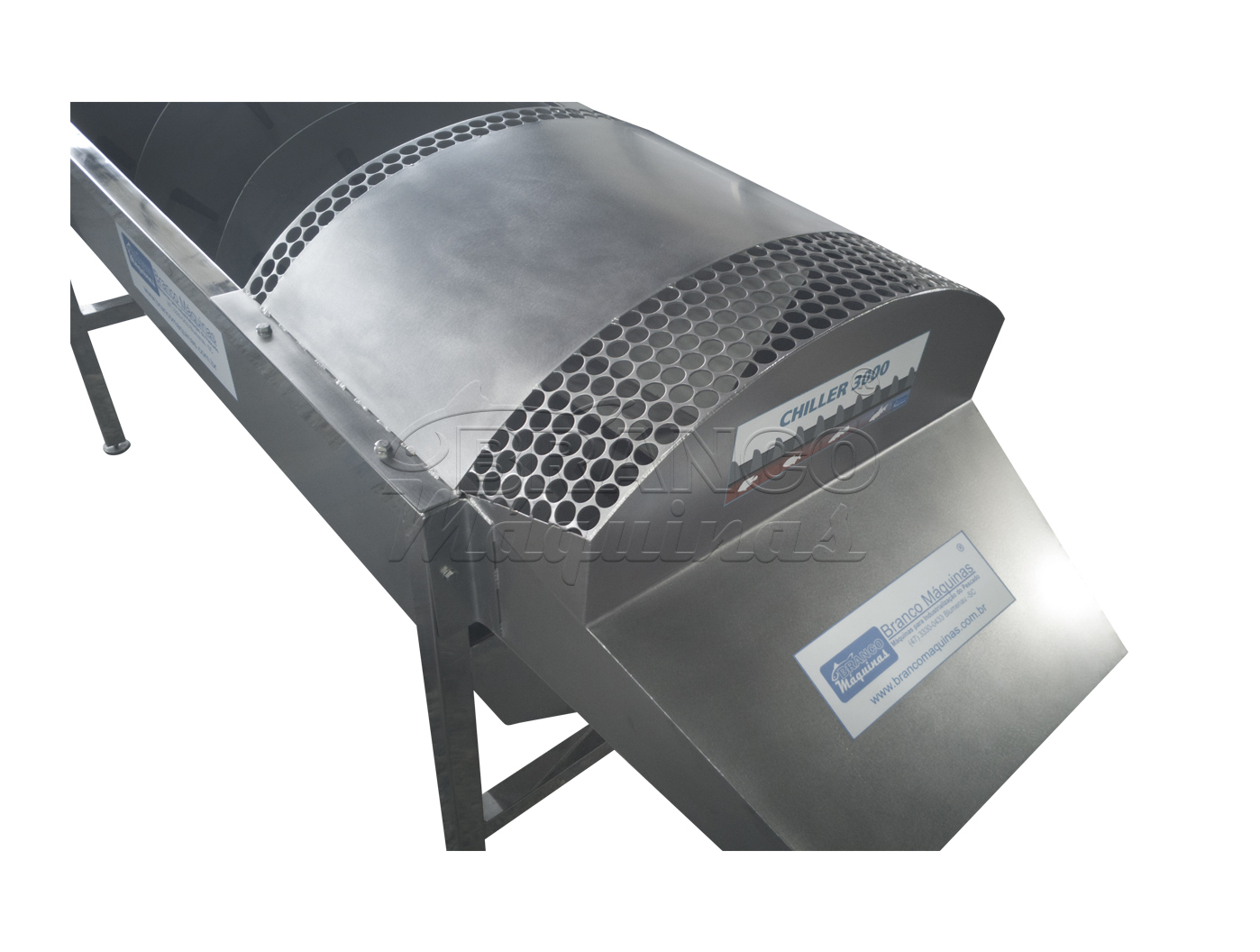

Fish washer cylinder, developed for fish bleeding , which occurs through its movement in ice water, inside the tank with helical thread. Trough base and fairing in folded sheet 1.2 and 1.5 mm, and square tube of 40 x 40 and 40 x 20 mm. Transport of fish with helical thread. Exit kick with hopper. Water outlet with 100 mm tube. Panel with general electronic push buttons, emergency, drum operation with rotation control by potentiometer. Three-phase geared drive with electric start switch. Gear motor of the SEW brand. Machine manufacturing structure in AISI 304 stainless steel.

More information:

Finish: Sandblasted / Brushed

Measures: 1350 H x 800 W x 3000 C mm

Production: 1300 kg / h (Tilapia)

Single phase voltage: 110 V or 220 V

01 Operator
