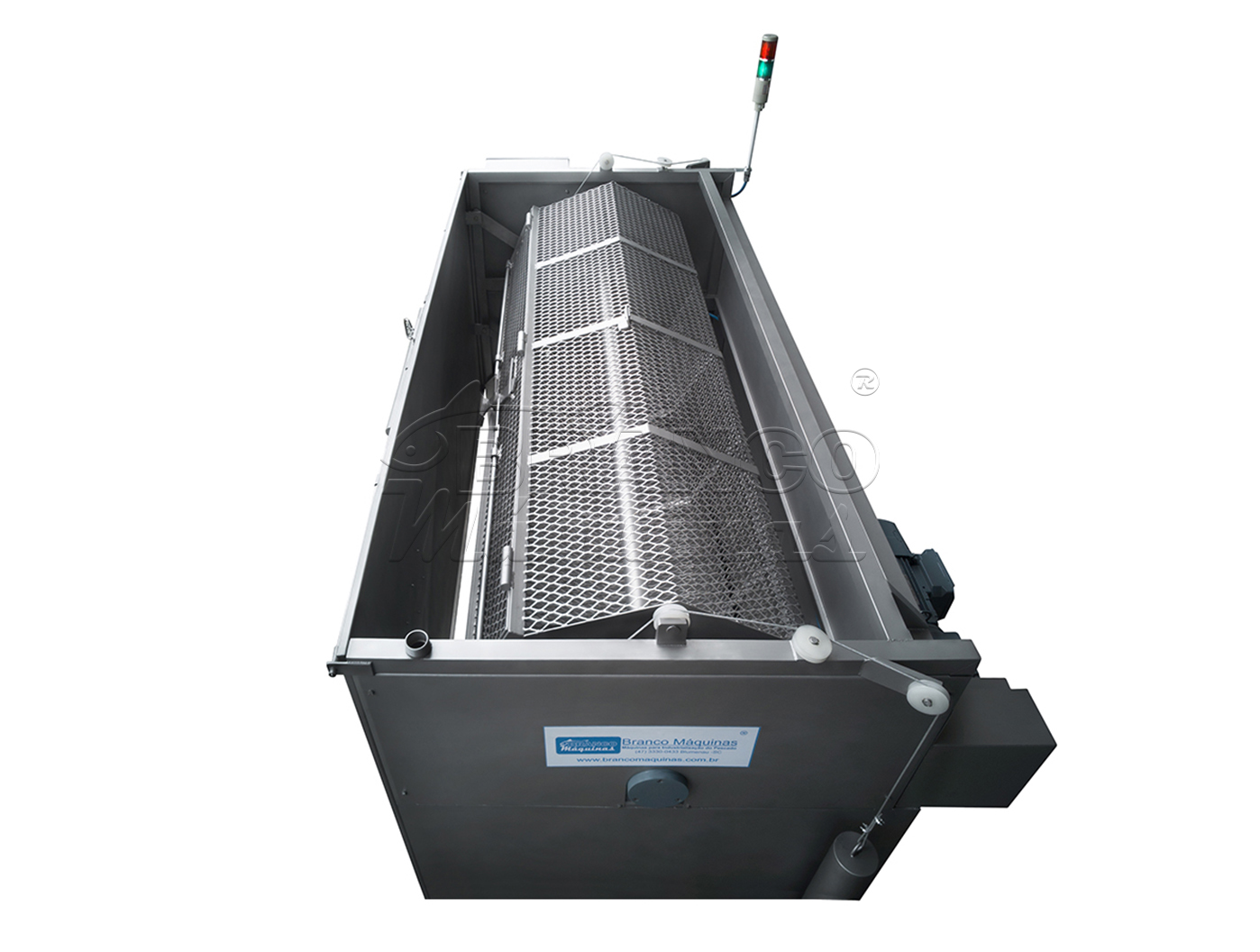

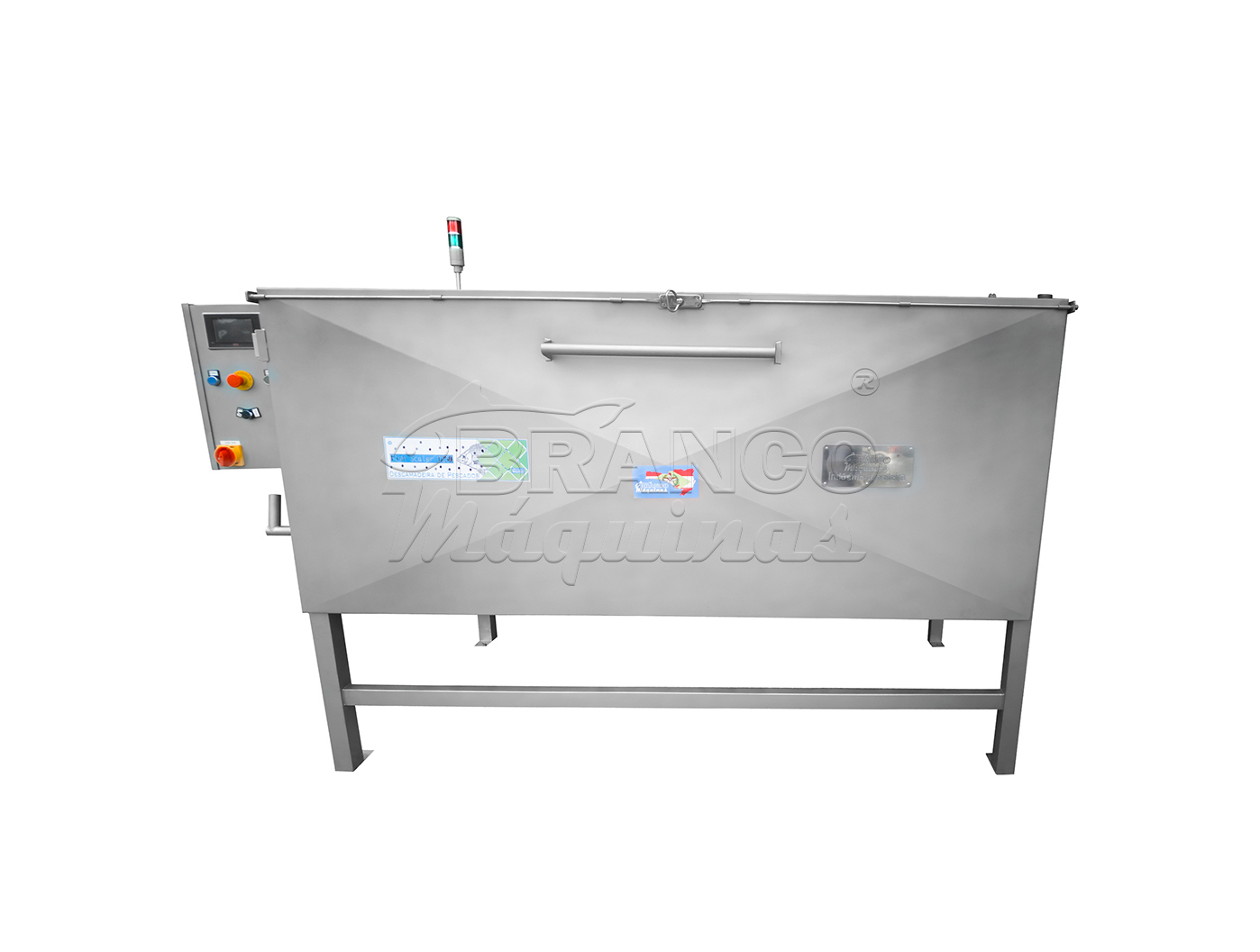

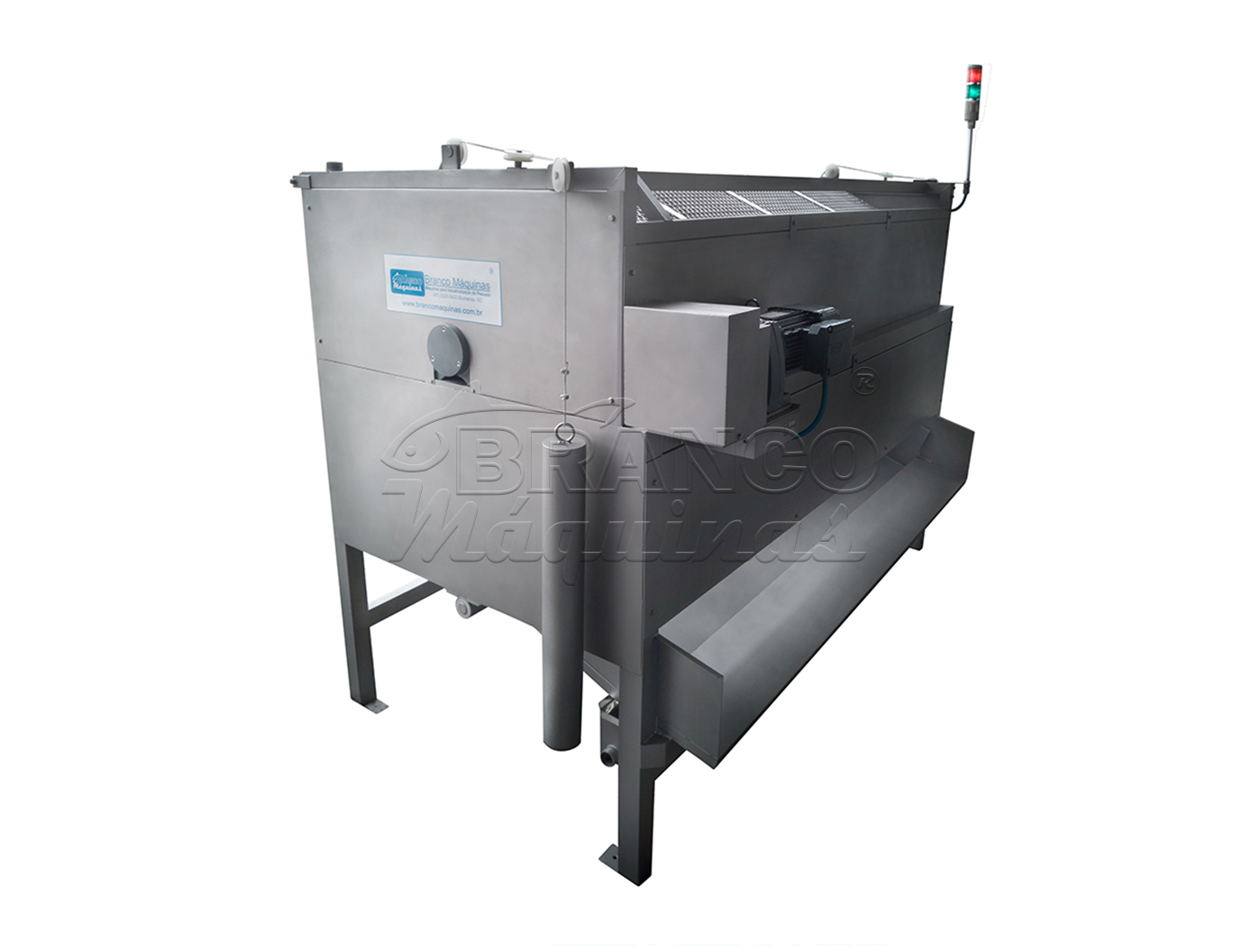

Equipment developed to perform the desquamation of fish. Projected horizontally through a trapezoidal screen drum, without a hopper, it is manual. Base in 60 x 60 and 60 x 40 mm square tube, folded plate 1.2 and 1.5 mm, drum in trapezoidal mesh 3 or 5 mm. Shared exit, being front for the fish and the rear for disposal and separation of scales and water, and this same disposal is for trough with perforated separation screen. Aluminum bearings and pulleys with tempera. Double spherical roller bearings. Movement of gears by chain. Activation of water by solenoid valve. Panel with general electronic pushbuttons, emergency, drum activation with electric start key. 200 kg load per cycle, scaling programmed in PLC with time and speed adjustment. Three-phase geared drive with electric start switch. Gear motor of the SEW brand. Machine structure in AISI 304 stainless steel.

More information:

Finish: Sandblasted

Measures: 1750 H x 1500 W x 2600 C mm

Production: 1600 kg / h (Tilapia)

Single-phase voltage: 110 V or 220 V

01 Operator
