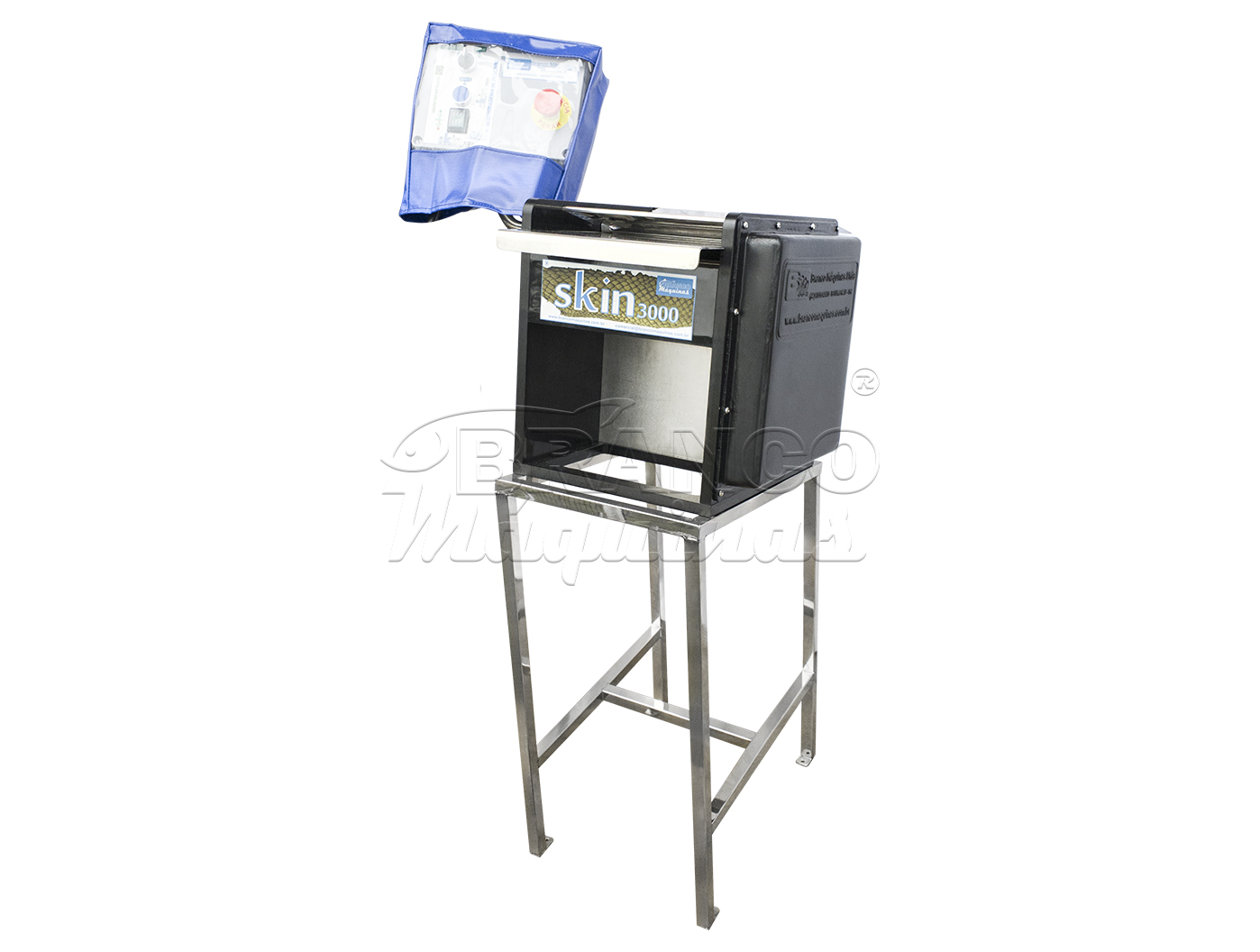

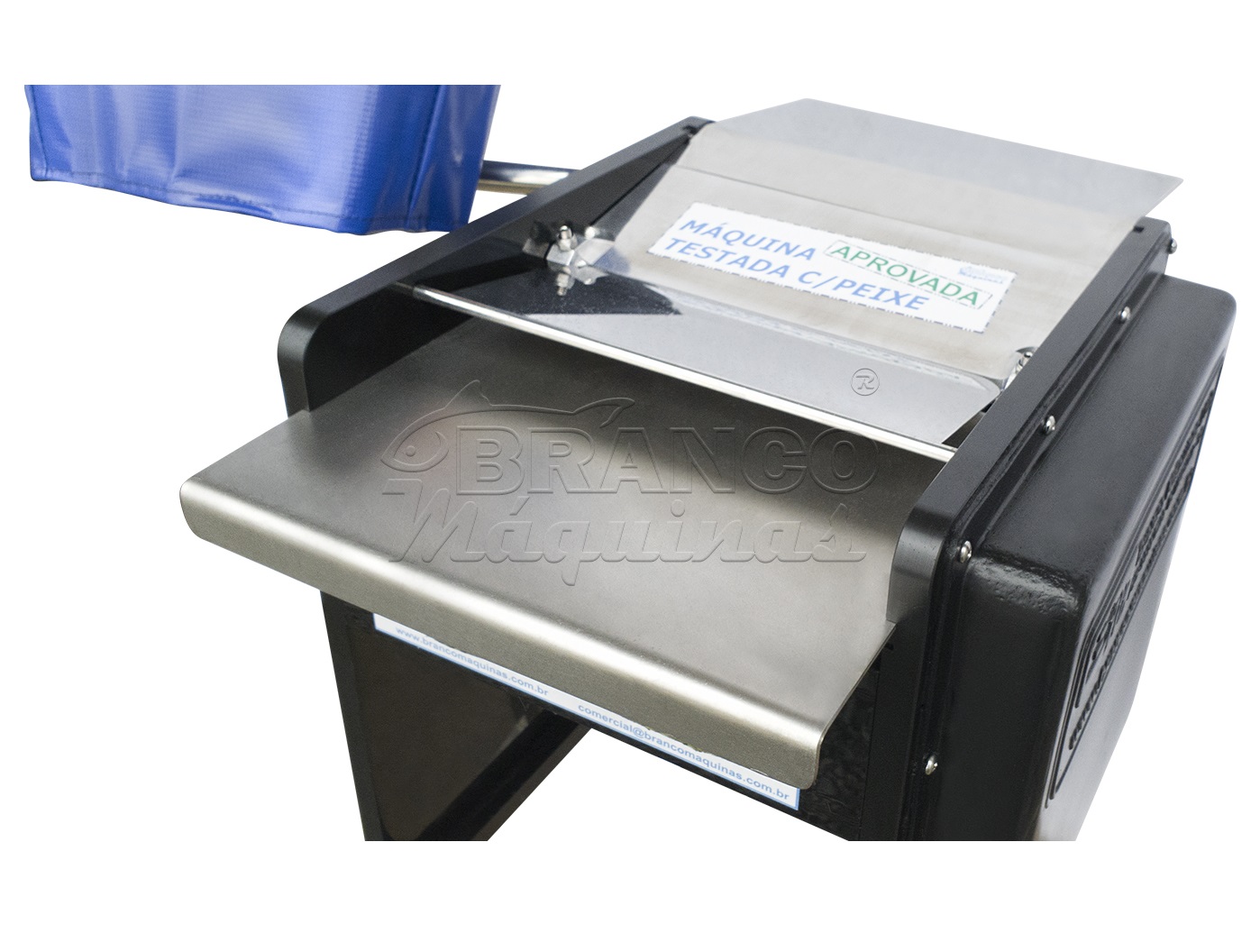

Equipment developed for the removal of skin from fish. Developed to remove the leather from the fillets. Designed to work with and without scales. Serves the processing of various fish such as tilapia, carp, pacu, tambaqui among others from 600 to 1200 grams. Base in 20 x 20 mm square tube, 1.2 and 1.5 mm and 15 mm folded plates. Knife holder set with knife and adjustments. Tooth extraction roller and roller for discarding leathers. Bearing bearings. The leather is removed by starting and with a blind knife (without losses). 2 water points, one on the fillet inlet plate to the extractor roll, the other between the extractor rollers, helping the leather extractor, the control of this water is by record. Panel with general electronic buttons, emergency and activation. Three-phase geared drive with electric start switch. Gear motor of the SEW brand. Machine structure in AISI 304 and HDPE.

More information:

Finish: Polished

Measures: 1300 H x 400 W x 400 C mm

Production: 30/40 fillets / minute (Tilapia)

Three-phase voltage: 220 V or 380 V

01 or 02 Operators
