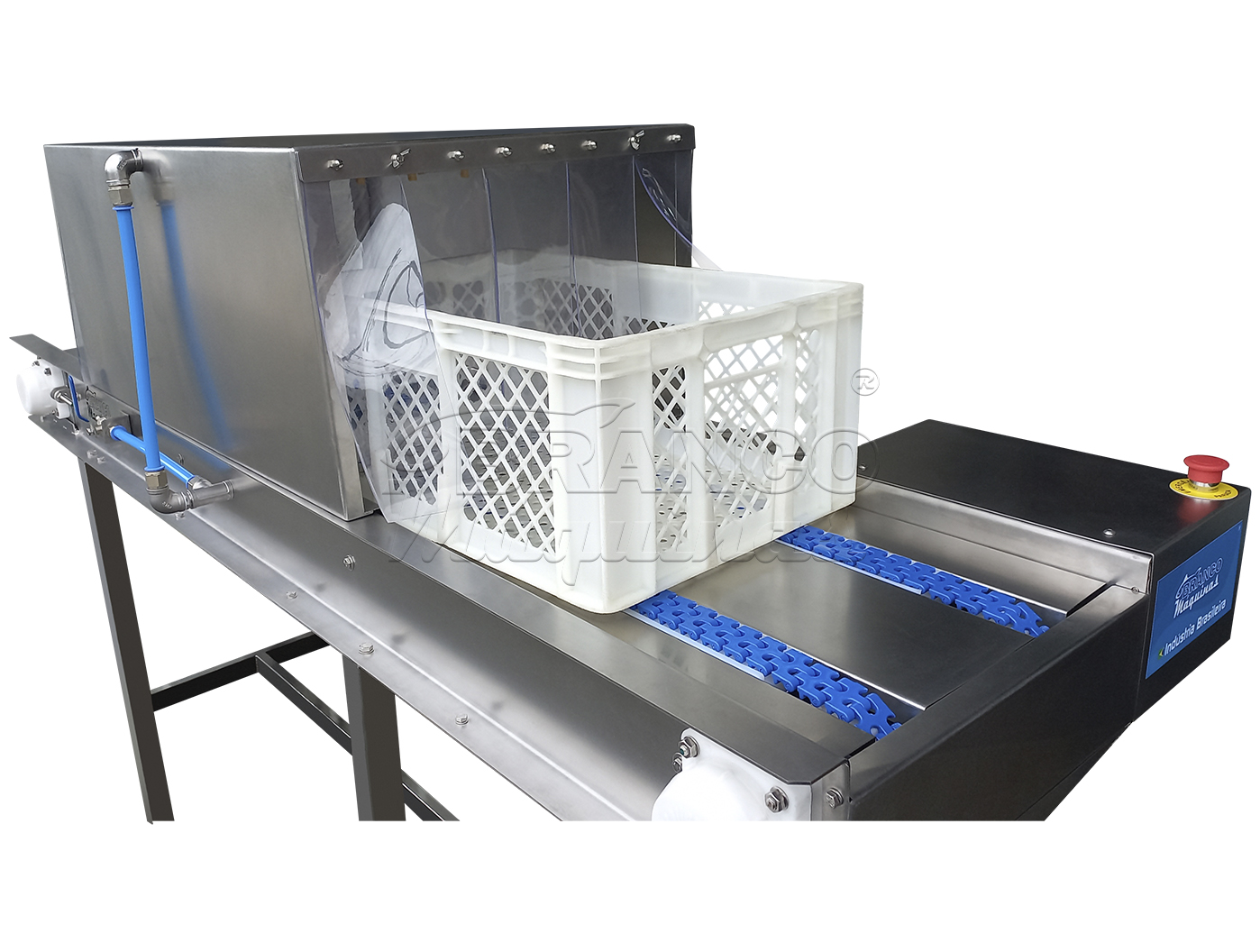

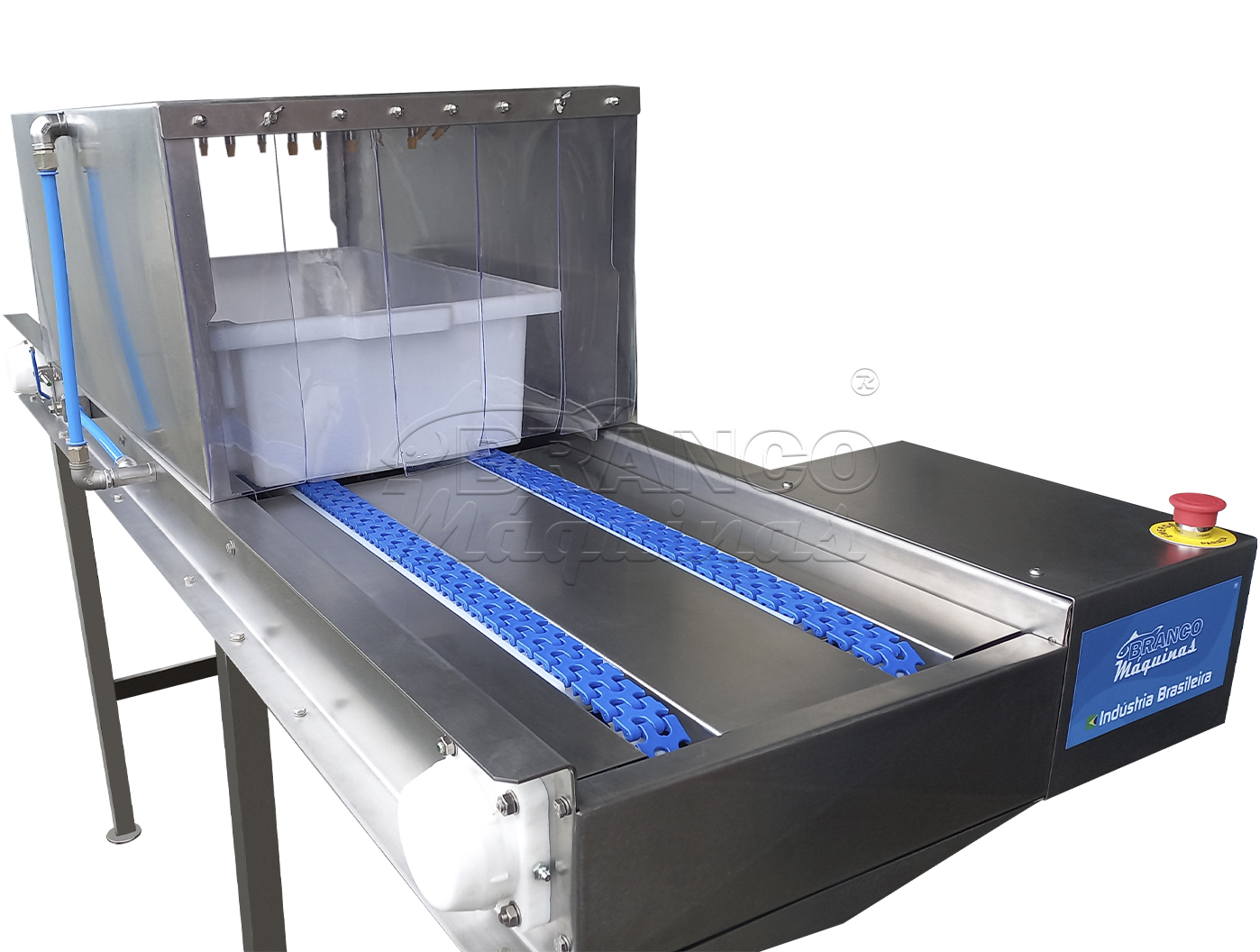

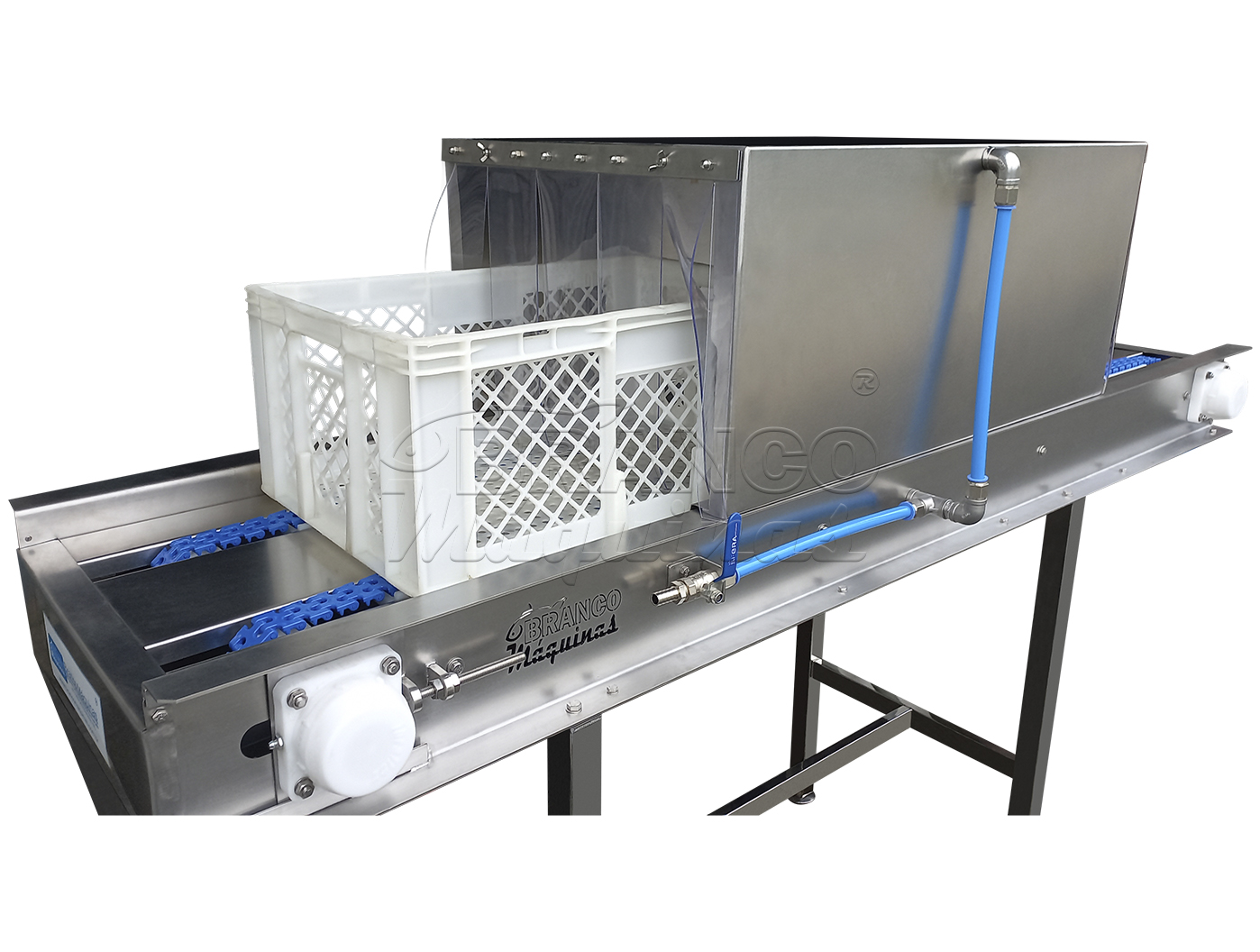

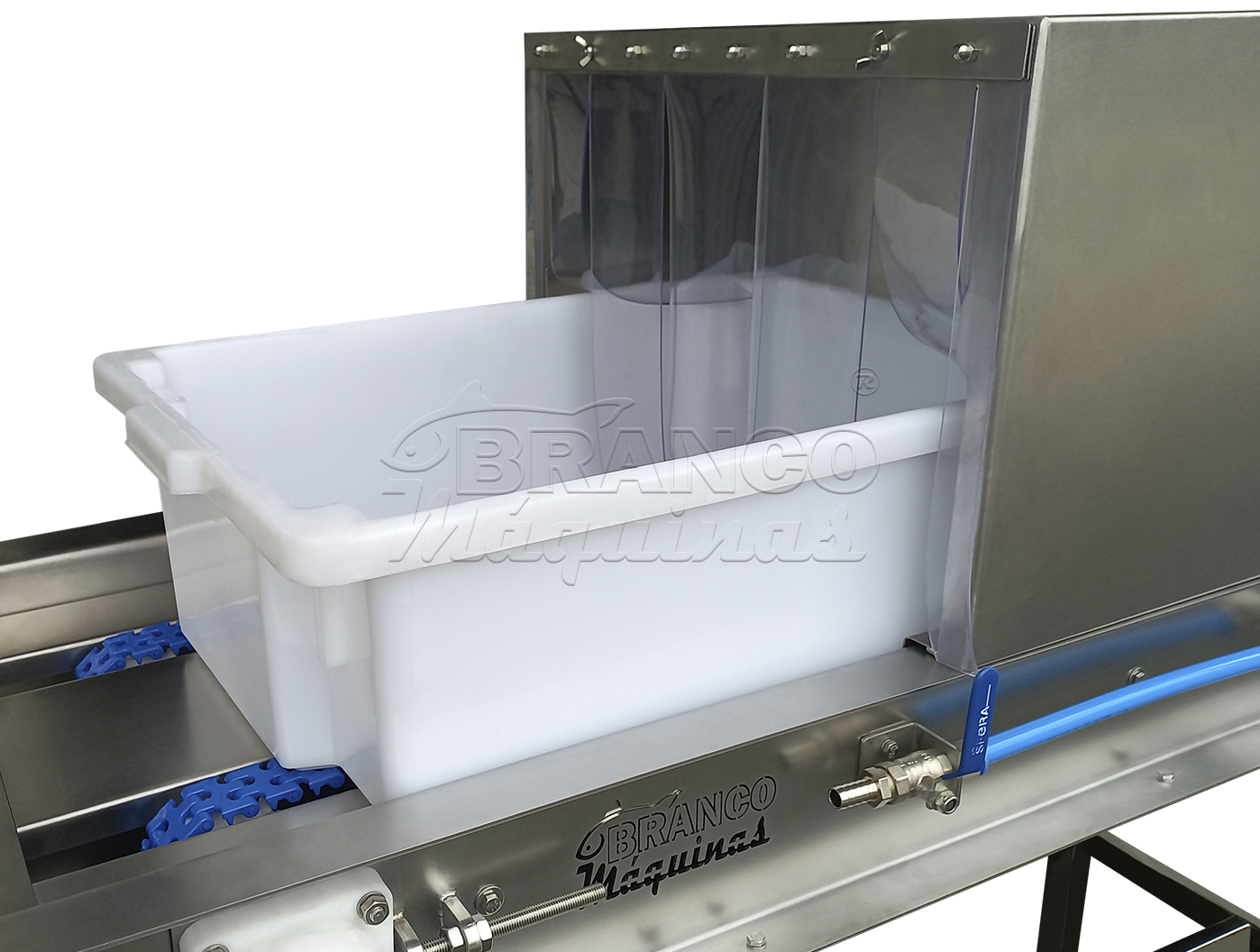

Fish Washing / Transporting Mat, developed to wash and move fish to the processing room. Designed with a 50 mm straight flighted polypropylene conveyor belt. Stainless steel piping, tree construction model lower and higher than the conveyor belt for feeding water, designed with spray nozzles. Panel with electronic emergency pushbuttons and activation with speed adjustment. 40 x 40 mm square tube base. 1.2 and 1.5 mm flat/bent sheet profile. 75 mm tube water outlet. SEW three-phase geared motor drive. Machine structure in 304 stainless steel.

More information:

Finish: Polished/Brushed

Dimensions: 1400 H x 715 L x 2610 L mm

Production: 1500 kg/h (Tilapia)

Single Phase Voltage: 220V

01 Operator
