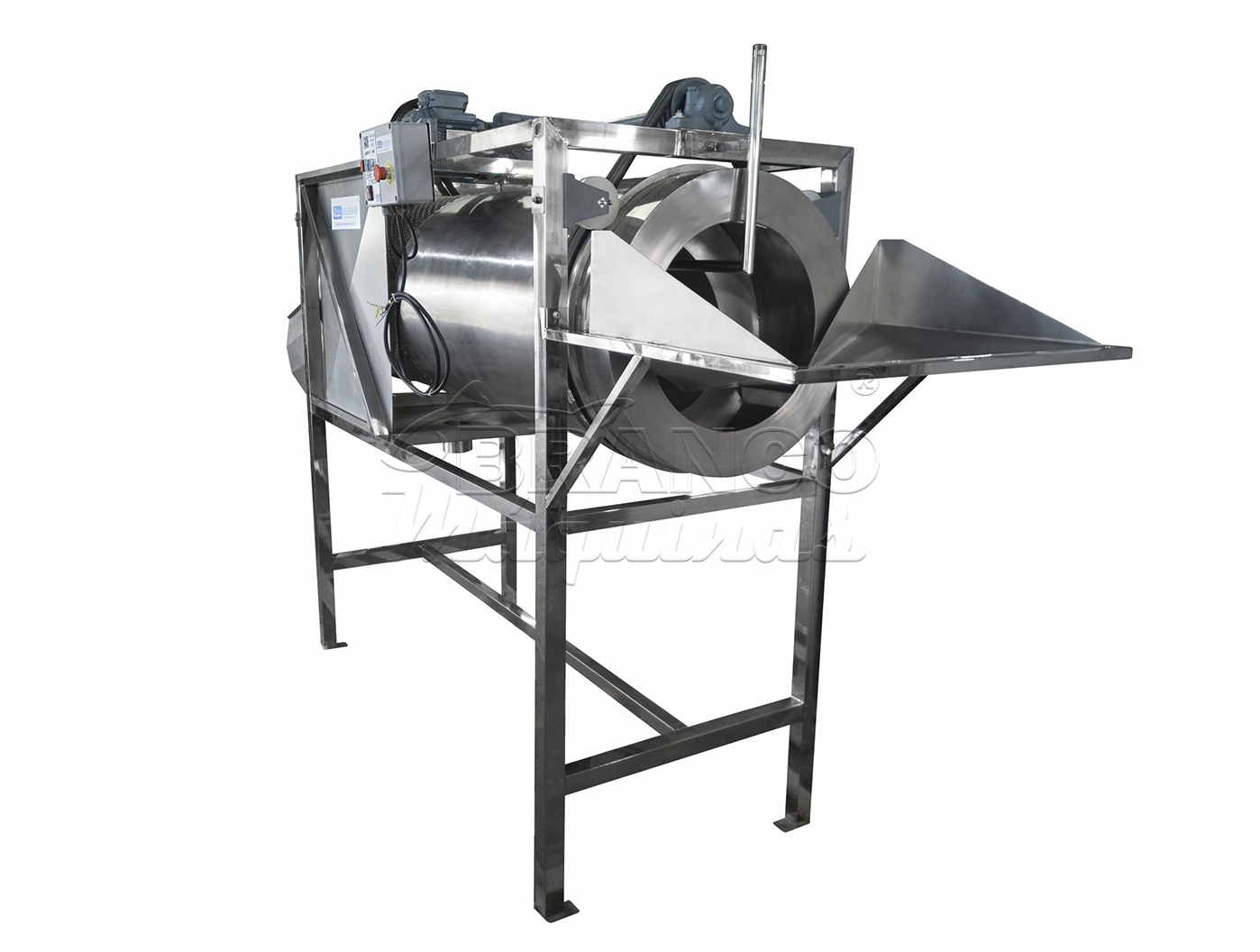

Fish washer cylinder, developed to wash fish. Designed in a cylindrical shape, with round helical transport holes and nozzles for washing fish. Base, trough and fairing in folded sheet 1,2 - 1,5 - 3 mm, and square tube of 40 x 40 and 40 x 20 mm. The feeder and kick out through hoppers. 3/4 record for water inlet control. Water outlet with stainless steel valve 3.1 / 2 x 1.1 / 2. Panel with general electronic buttons, emergency and activation. Three-phase geared drive with electric start switch. Gear motor of the SEW brand. Machine manufacturing structure in AISI 304 stainless steel.

More information:

Finish: Polished / Brushed

Measures: 2100 H x 1000 W x 2290 C mm

Production: 1500 kg / h (Tilapia)

Three-phase voltage: 220 V or 380 V

01 Operator
